Fertilizer Hopper

Hoppers are available with a ground drive or an electric drive motor.

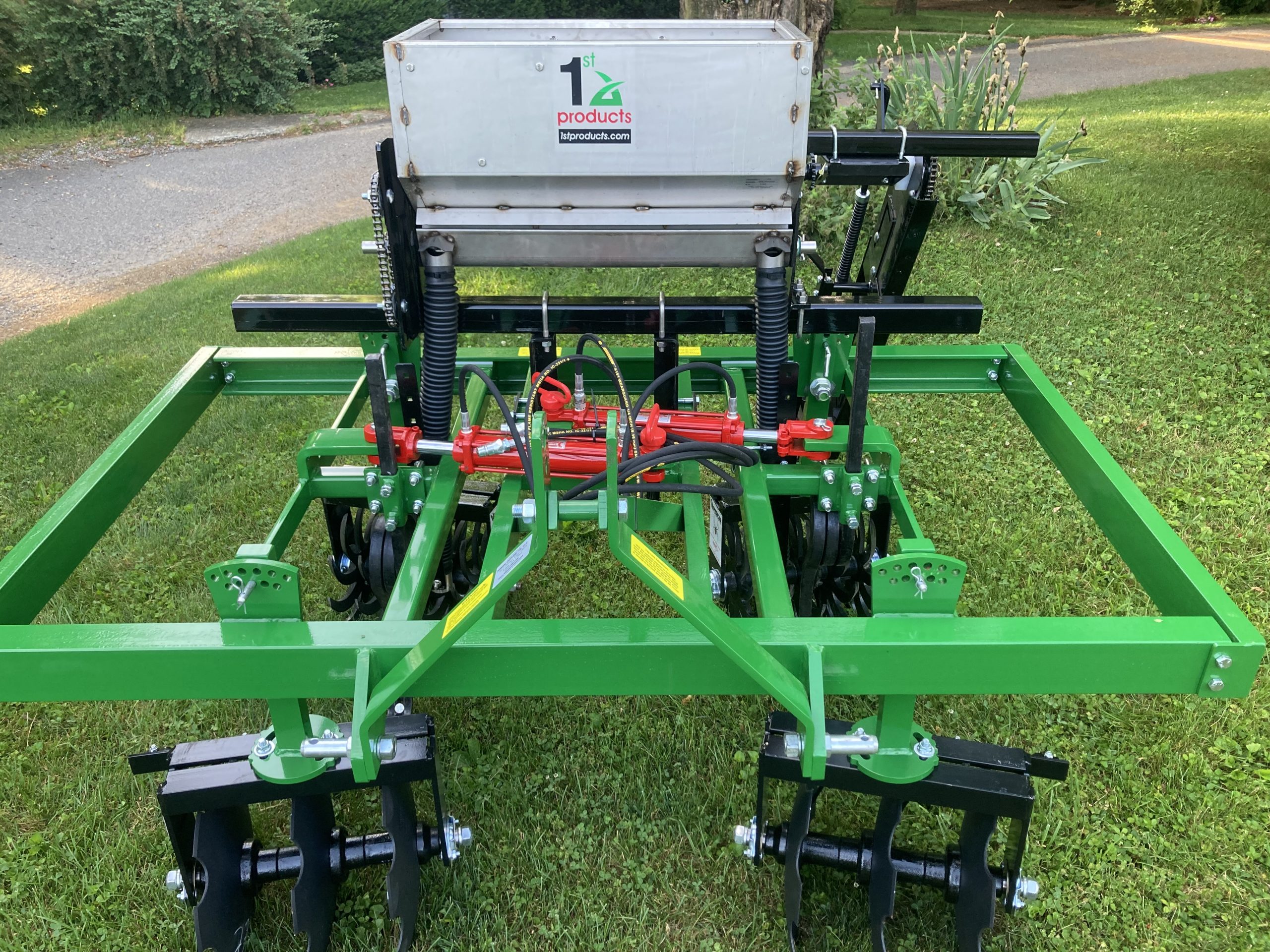

Ground drive fertilizer hopper on Hillside Cultivator Model CS

Manufactured by 1st Products: https://1stproducts.com/agriculture-wholegoods/dry-fertilizer/

See Catalog page for pricing.

Features:

  • Mounting brackets included for hopper and drop tubes on a Hillside Cultivator
  • 250lb nominal capacity of hopper
  • Ground drive has changeable sprockets for variable rate
  • Electric drive has variable speed 12v DC motor for variable rate
  • Stainless steel hopper and auger.
  • 2 outlets for single or double row applications
  • Removeable auger trough for easy cleaning
  • 12 Volt drive is powered by a long cord with alligator clips to attach to tractor
  • Electric drive speed adjustment is located in an enclosure on the machine
  • Electric drive is stopped and started with hand trigger switch from the tractor

Options:

  • Ground drive or Electric Drive
  • Optional Stainless Steel lid
  • Optional Stainless Hopper extensions to double capacity.
Auger and paddle wheel dispenser shown with trough unclipped.
Rate chart showing interchangeable sprockets for ground drive.

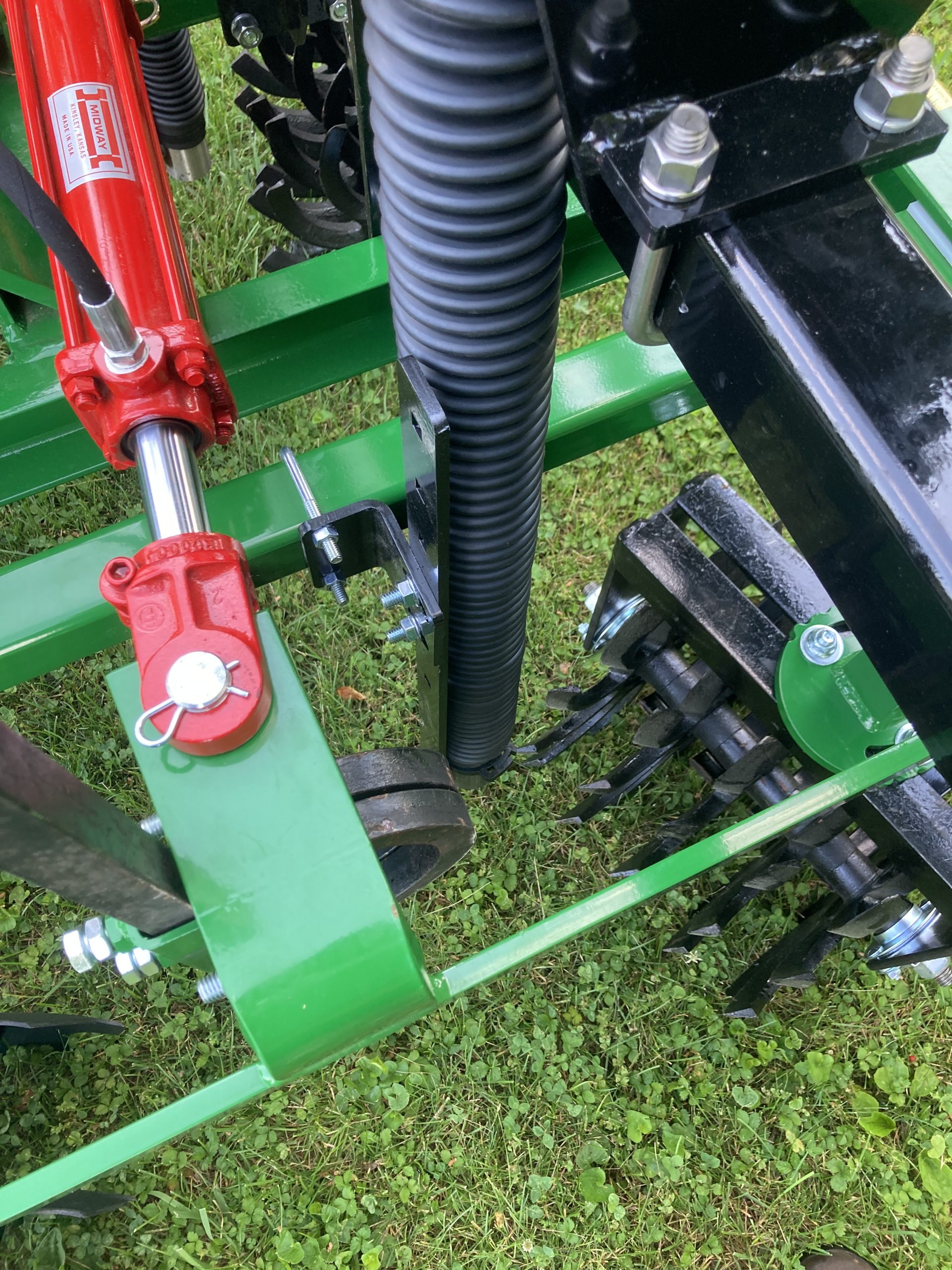

Drop tube mounting.
